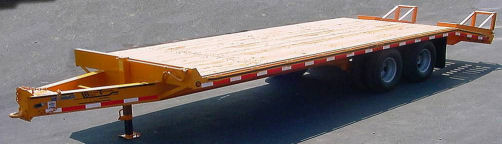

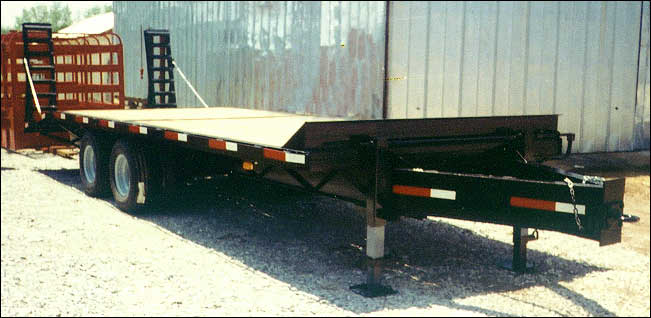

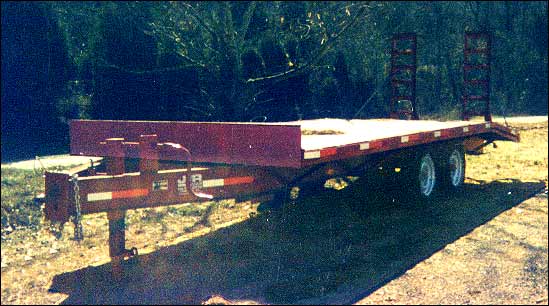

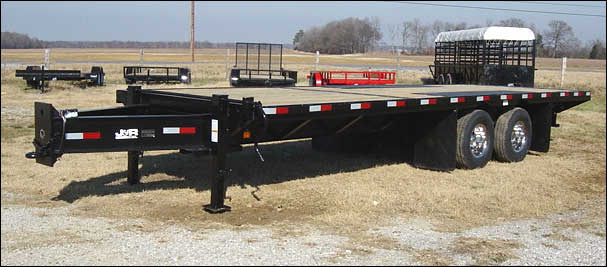

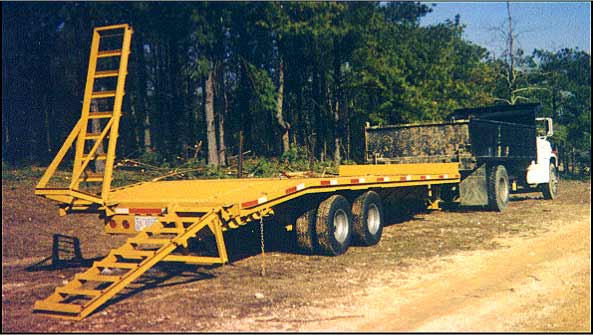

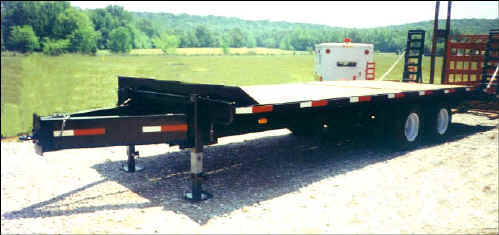

Pintle
Trailers
ALL PRIMED & PAINTED (2 COATES EACH)
|
|
 |
 |
|
JACK: 10M# DROP LEG
COUPLER: ADJUSTABLE 3” PINTLE RING
FLOORING: 2” PRESSURE TREATED PINE |
RAMPS: 3”CHANNEL 5’ LONG FOLD OVER SPRING ASSIST,
SHOWN WITH A SELF CLEANING ANGLE DOVETAIL
|
|
 |
 |
|
|
Pricing & Specifications / Options
| Add
On Options |
|
|
Add
On Options |
|
| Oak Floor (per foot) |
|
Self
Cleaning Dove |
|
| Tri
- Axle |
|
Break-Away
Kits |
|
|
Tilt Deck |
|
|
|
Standard Pintle
Trailers
GVW
14,000 lb |
- 10" I-Beam @ 12 lb.
frame & tongue
- Cross members 3"
channel on 16" centers
- side rails 6" channel state pockets rub rail
- Treated floor 2 x 8
- jack 12m# Drop Leg
- Adjustable 4bolt 3" pintle ring
|
- Ramps 3" channel 5' long
fold over spring assist
- Black, red, gray or fleet
yellow only
- All DOT approved w/ break
away kit
- Undercoat
- Step on driver side
|
| Over all
Width - Length Ft. |
Dexter Axles |
# of Brake axles |
|
| 8 x 16 + 4 |
(2) 7000 lb. |
2 |
|
| 8 x 20 + 5 |
(2) 7000 lb. |
2 |
|
| 8 x 25 + 5 |
(2) 7000 lb. |
2 |
|
| |
Standard Pintle Trailers
GVW 20,000 lb
SAME AS ABOVE EXCEPT
|
- 6" CHANNEL with state
pockets every 2 foot with rub rail
- 12M# Drop Leg jack
- Undercoat and step on driver
side
- Black, red, gray, and fleet
yellow
- 4" Channel fold over spring
assist ramps
- models 29 foot and longer
comes with Mid turn
/ flex pipe dupports & bridge
|
|
|
| Over all
Width - Length Ft. |
Axles |
# of Brake axles |
|
| 8 x 20 + 5 |
(2) 10k |
2 |
|
| 8 x 25 + 5 |
(2) 10k |
2 |
|
| 8 x 30 + 5 |
(2) 10k |
2 |
|
| 8 x 35 + 5 |
(2) 10k |
2 |
|
Pintle
Trailers GVW
24,000 lb
SAME AS STANDARD |
- 10" I-Beam @ 12 lb.
frame & tongue
- Cross members 3"
channel on 16" centers
- side rails 6" channel state pockets rub rail
- Treated floor 2 x 8
- jack 12m# Drop Leg
- Adjustable 4bolt 3" pintle ring
|
- Ramps 3" channel 5' long
fold over spring assist
- Black, red, gray or fleet
yellow only
- All DOT approved w/ break
away kit
- Undercoat
- Step on driver side
|
|
| Over all
Width - Length Ft. |
Axles |
# of Brake axles |
|
| 8 x 16 + 4 |
(2) 12k. |
2 |
|
| 8 x 20 + 5 |
(2) 12k. |
2 |
|
| 8 x 25 + 5 |
(2) 12k. |
2 |
|
| 8 x 30 + 5 |
(2) 12k. |
2 |
|
| 8 x 35 + 5 |
(2) 12k. |
2 |
|
|
|
|
|
|
| |
|
|
